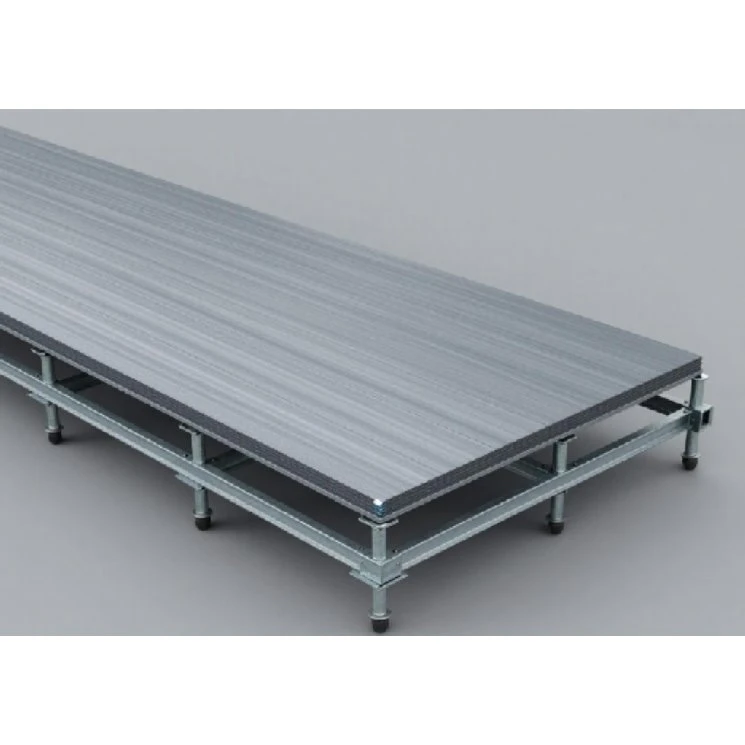

High-Load Data Center Raised Floor System chu a sang ber a ni
Fineco Global High-Load Data Center Raised Floor System hi mission-critical facility hrang hranga high-density server hmanrua dahna atana engineer a ni. Steel shell rigid leh high-density lightweight concrete core hmanga siam a ni a, he system hian tunlai enterprise rack, battery energy storage system (BESS), leh heavy cable management underfloor-te tana mamawh structural load capacity a pe a ni.
Thil pawimawh tak tak
Concrete Core density sang tak-:Prime ordinary Portland cement hmanga khat a ni a, hollow acoustics a ti bo a, chutih rualin compressive strength sang zawk leh sound deadening a pe bawk.
A dikna-Welded Steel Shell:Cold-rolled steel sheet te chu dimensional stability, squareness, leh long-term resistance to warping a awm theih nan automatic in welded a ni.
Epoxy Powder hmanga siam a ni:Surface pickling leh phosphating hnua thermosetting epoxy powder coating hmanga tihfel a ni a, ISO-compliant corrosion resistance a pe a ni.
Modular Panel inthlak danglam theih te:Standard 600 × 600 mm dimensions hian nakin lawka tihpunna tur atan seamless integration leh layout flexibility a siamsak a ni.
Technical lam thil chi hrang hrang
|
Parameter a ni |
A sawifiahna Standard |
|
Panel Dimension hrang hrang |
600 × 600 × 35 mm (A tuar theihna: ±0.2 mm) a ni. |
|
Concentrated Load a ni |
4.45 kN atanga 6.67 kN (CISCA Grade na tak / rit lutuk) a ni. |
|
Ultimate Load a ni |
13.34 kN atanga 20.0 kN aia tam emaw, a tlukpui emaw |
|
Rolling Load a ni |
2.7 kN atanga 4.5 kN (structural failure awm lovin cycle 100,000) a ni. |
|
Uniform Load a ni |
15 kN/m2 atanga 22 kN/m2 thleng a ni |
|
System Weight a ni |
42 kg/m2 atanga 58 kg/m2 (core density leh gauge a zirin) |
|
Surface Resistance a ni |
1.0 × 106 atanga 1.0 × 109 Ω (ESD Anti-Static) thleng a ni. |
|
Fire Performance a ni |
Class A (ASTM E84 pakhatah meialh darh dan Index 0, Meikhu siam chhuah Index 0) |
Seismic hnathawh dan (Seismic Performance) a ni
Lateral Bracing hmanga siam a ni.Pedestal leh stringer assembly te hian multi-axis ground acceleration absorb turin seismic bracing kit an pawm a.
Uplift do theihna: 1.1.Screw-lock stringer connection hian Richter Magnitude 8.0 thlenga seismic shock neih laiin panel displacement leh rack tipping a veng thei a ni.
Sway Control: a ni.Equipment framing leh access flooring atana Telcordia GR-63-CORE Zone 4 standard zawm kim vek.
A hman dan tlangpui
Hyperscale & Colocation Data Center hrang hrangte chu:White space flooring hi high-density blade server, modular UPS unit, leh heavy cabling pathway te tana siam a ni.
Enterprise Server Room hrang hrangah:Computer environment him tak, static dissipation khauh tak leh structural load margin sang tak mamawh.
Telecommunication Hub hrang hrangah:Cable-dense facility-ah chuan underfloor cooling plenum chhunzawm zel a ngai.
Control Room leh Command Center hrang hrangah te:24/7 operational space-ah ergonomic flooring mamawh a ni a, integrated power leh data routing a awm bawk.
Installation & Customization hmanga siam a ni
Installation Tolerances te chu a awm thei
- Squareness Tolerance: Panel khatah 0.25 mm diagonal difference aia tlem emaw, a tlukpui emaw a ni.
- Height Adjustability: Standard pedestal adjustment range chu nominal FFH atanga ±25 mm atanga ±50 mm thleng a ni.
Customization duhthlan tur a awm
- Panel Thickness: 30 mm, 35 mm, leh 40 mm configuration-ah a awm.
- Surface Finishes: High-Pressure Laminate (HPL), Conductive PVC, emaw site finish atana primed bare steel emaw a ni.
- Cable Cutouts & Grommets: Factory-machined grommet hole, brush seal, leh ventilation panel (perforation rates 15% atanga 55%) te chu targeted airflow delivery atan a ni.
Standards & Quality te chu a hnuaia mi ang hian a ni
Manufacturing leh testing protocol-te hian international benchmark-te chu a zawm nghal vek a ni:
CISCA: 1.1.Concentrated, ultimate, leh rolling load testing te chu a dik tih finfiah a ni.
EN 12825-ah chuan:European standard-a raised access floor-te chu ultimate load leh safety factor hrang hranga categorize-in a awm.
ASTM E84 / UL 723 hmanga siam a ni.Surface burning characteristic testing neih a ni.
ISO 9001 & ISO 14001 te chu:Quality leh environment enkawl dan tur dik tak hriat chian a ni.
Thil siamchhuah & Project puihna
Thil siam chhuah theihna:Automated stamping line, robotic welding cell, leh curing kiln te hian thla tin m2 50,000 chuang an siam chhuak thin.
Raw Material zawn chhuah theihna:Steel certified mill atanga lak chhuah, chemical composition leh tensile strength finfiahna Mill Test Certificate (MTC) nei.
Batch Testing neih dan tur:In-house universal testing machine te hian production lot tin tan load-bearing leh deflection test an ti thin.
Logistics leh Packaging te chu a hnuaia mi ang hian a ni.Export-grade fumigation-free thing pallets steel strapping leh moisture-barrier shrink wrap hmanga secured.
Engineering lama thil thehluh tur:Document package kimchang tak tak, CAD dawr drawing, third-party test report, leh MEP coordination atana structural calculation te pek a ni.
Zawhna Zawh fo thin
Q: Concentrated load capacity sang ber chu engzat nge ni?
A: System hian 4.45 kN atanga 6.67 kN thleng a support a, span 1/360 hnuaiah permanent deflection a nei a, CISCA Extra Heavy Duty mamawh a phuhruk a ni.
Q: Server rack atanga rolling loads system hian engtin nge a handle?
A: Welded steel box siam leh high-density cement core te hian structural delamination awm lovin cycle 100,000 chhungin rolling load 4.5 kN thleng an tuar thei a ni.
Q: Floor san zawng zawh tawh chu-site-ah siamrem theih a ni em?
A: Ni e. Threaded steel pedestal assembly hian ±25 mm atanga ±50 mm thlenga fine adjustment a phalsak a, level tolerances vawng reng turin heavy-duty nut hmanga him taka lock a ni.
Q: Panel-te hian eng fire rating nge an keng?
A: Steel-cement composite panels te hian ASTM E84 hnuaiah Class A fire rating an nei a, zero flame spread leh zero smoke development indices an nei a ni.
Q: High-density cooling zone tan perforated panel a awm em?
A: Ni e. Steel perforated panels hi open area percentage 15% atanga 55% thlenga siam a ni a, optional adjustable slide dampers hmanga thuam a ni.
